Activated Sludge

Advanced Activated Sludge Systems for Reliable Wastewater Treatment for Industry

Hydroflux provides advanced Activated Sludge Systems engineered for efficient and reliable wastewater treatment across a wide range of industries. With our deep expertise in wastewater treatment, we deliver customised solutions that optimise treatment performance while reducing energy consumption and operational costs.

The Activated Sludge process is one of several aerobic technologies we specialise in, and we will always explore alternative options to determine the most effective solution for each unique case. Our goal is to ensure optimal treatment efficiency and deliver long-term environmental benefits.

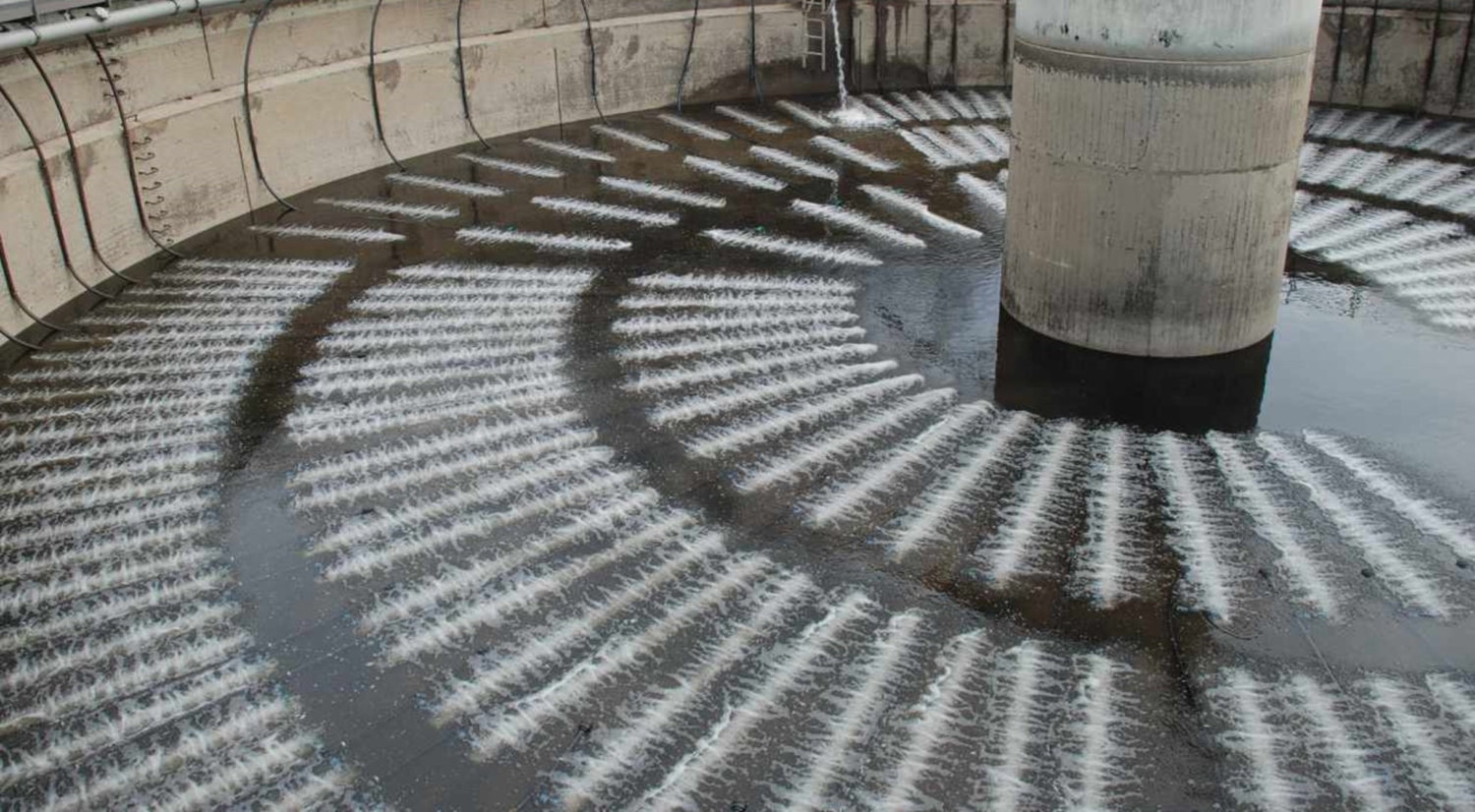

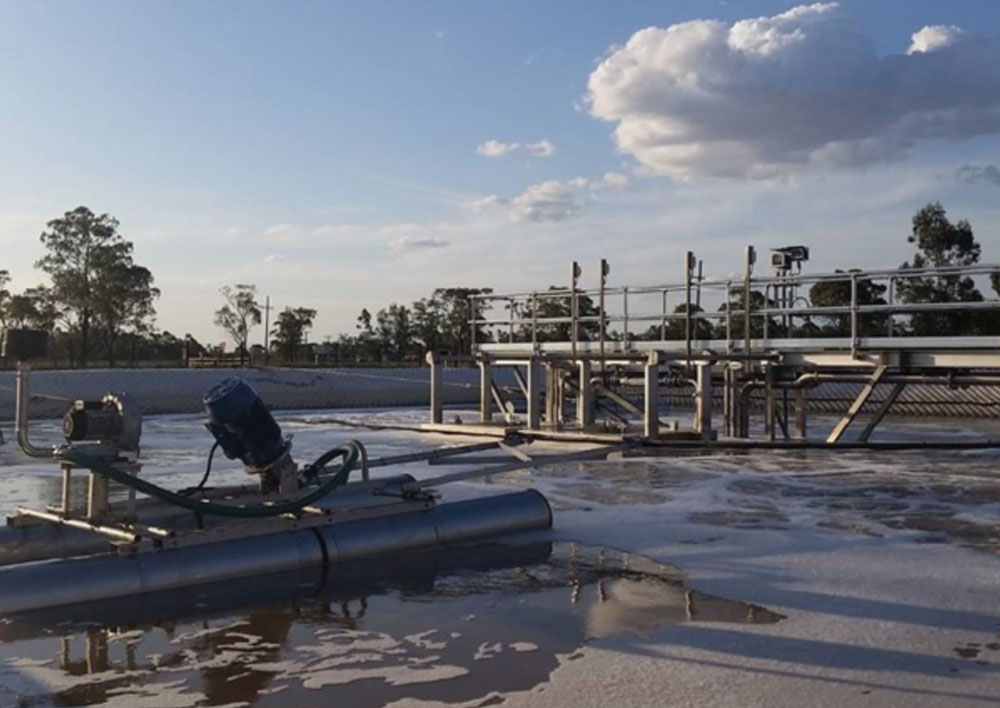

Aerostrip diffusers in an activated sludge aeration tank

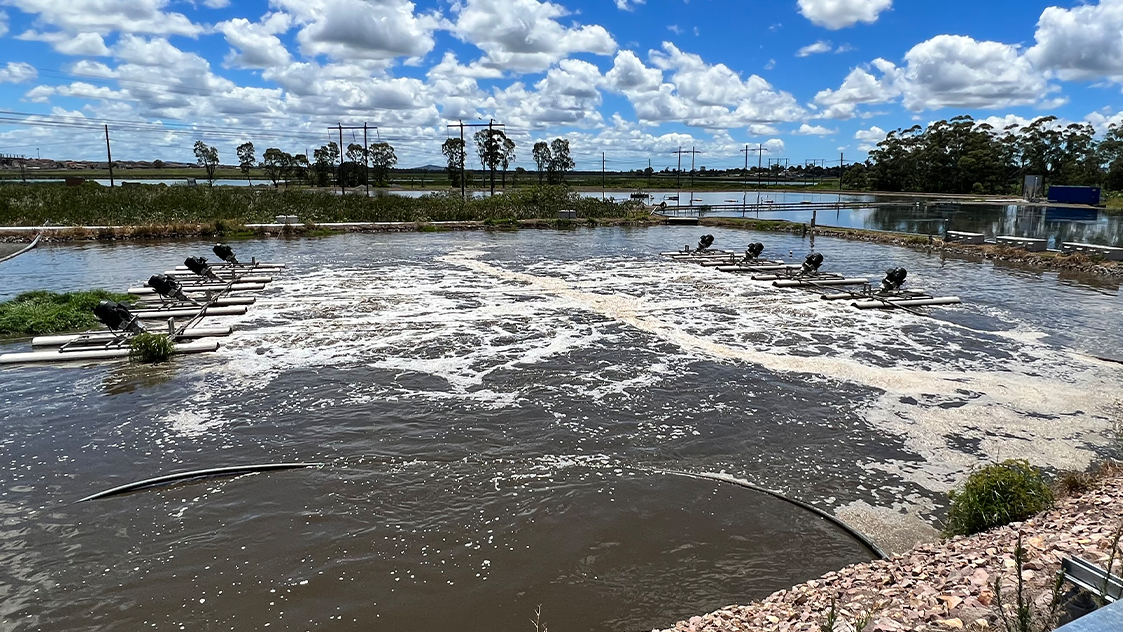

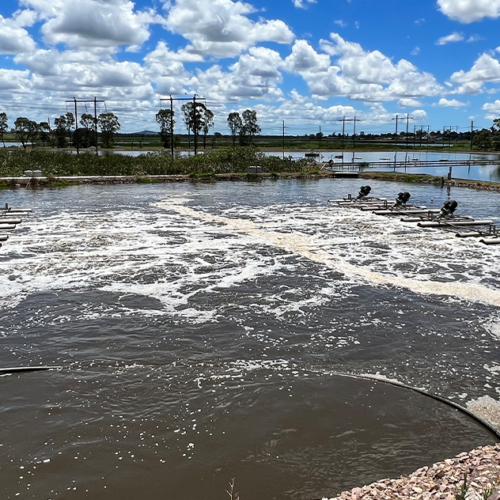

Surface aeration in an activated sludge pond

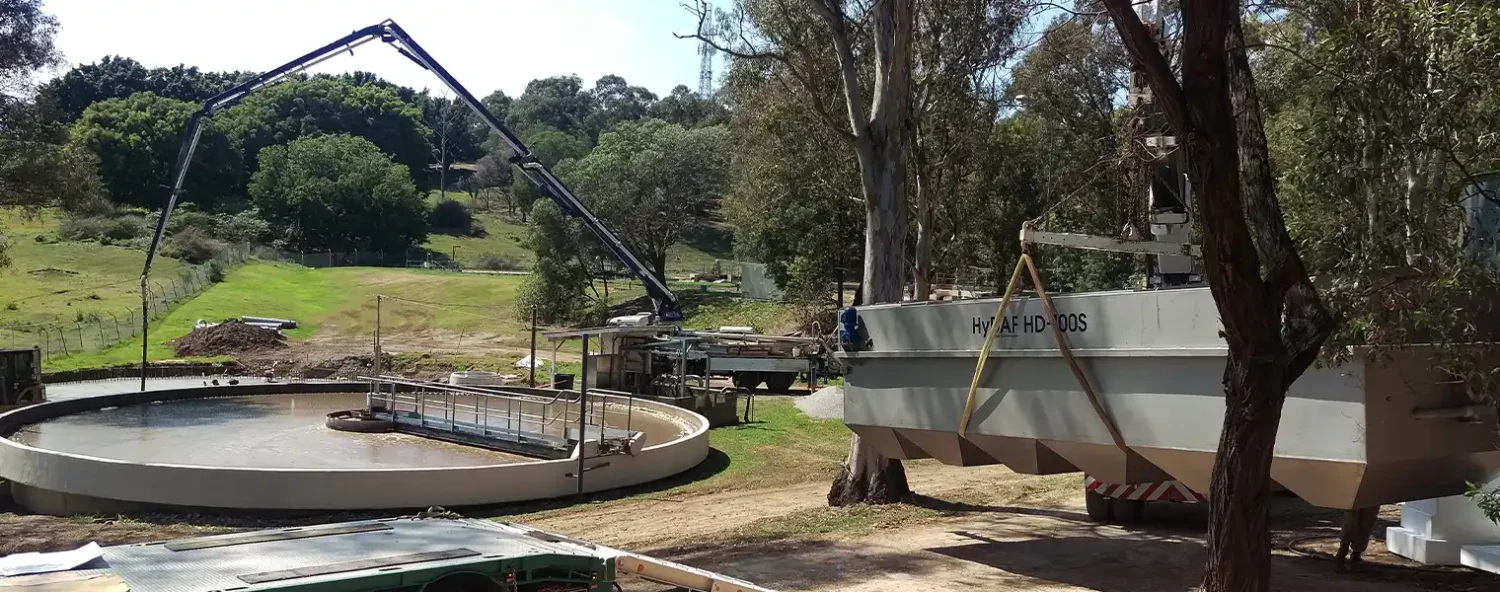

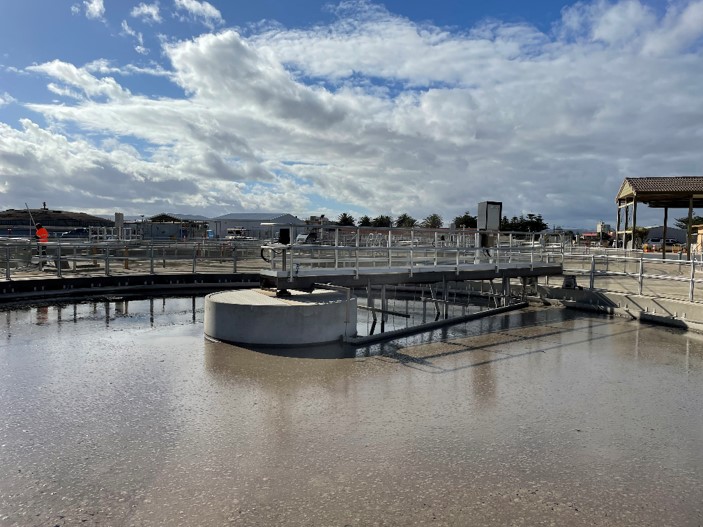

A Hydroflux Epco clarifier being used for removal of waste activated sludge

Some of the main benefits the activated sludge process are:

  • Aeration can be conducted in above ground tanks or ponds using a variety of aeration methods
  • Separation of biomass occurs in a conventional clarifier or DAF system
  • Activated sludge plants can be easily configured for high efficiency Biological Nutrient Removal (BNR) by incorporation of anoxic zones or tanks upstream of the main reactor
  • Chemical phosphorous removal can be incorporated into the clarification process

How the Activated Sludge Process Works

The activated sludge process is a conventional aerobic wastewater treatment system that includes an aeration zone, followed by biomass clarification and waste activated sludge dewatering. Biomass clarification can be achieved using either a clarifier or a HyDAF system. In industrial applications, Dissolved Air Flotation (DAF) systems are increasingly favoured for use alongside activated sludge systems due to their compact footprint and enhanced separation efficiency.

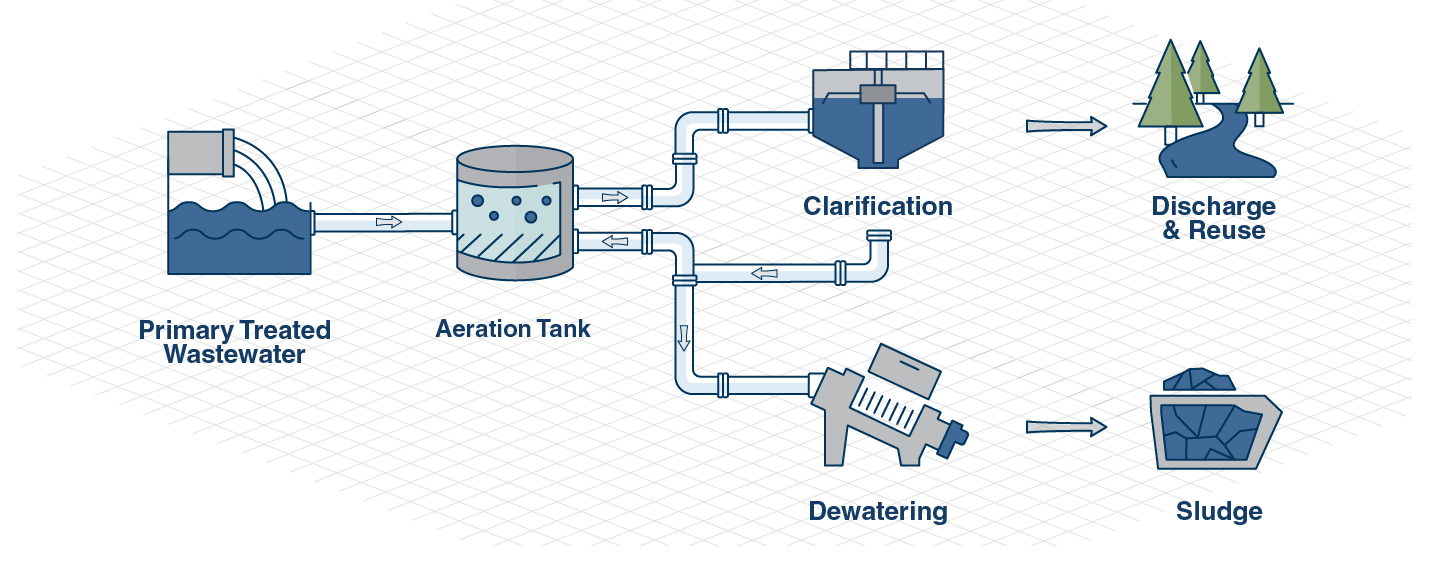

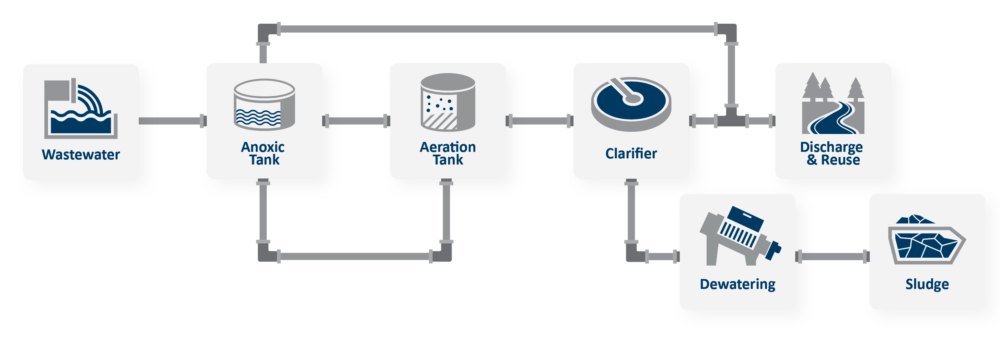

The Stages of the Activated Sludge Process

1. Wastewater is introduced into the aeration tank at a constant flow rate where oxygen is introduced and biologically treated wastewater flows out of the aeration tank directly into a clarifier or HyDAF system

2. The clarifier or HyDAF system removes the biomass in the wastewater and the treated water flows to the point of discharge

3. The removed biomass is dewatered, further processed / dewatered, and usually removed from site as waste activated sludge (WAS). Some biomass is returned back to the aeration tank as mixed liquor return (MLR) to retain sufficient biomass for the treatment process

4. If additional Nitrogen removal is required, an anoxic tank is often incorporated upstream of the aeration tank where nitrification and denitrification occurs.

Nutrient removal

Nitrogen removal can be incorporated into the activated sludge process by the inclusion of an anoxic zone upstream of the aeration tank with a mixed liquor return (MLR) loop that recirculates water between the aeration and anoxic tanks. Some phosphorous will be taken up in the biological process however if very low concentrations are required, a simple addition of coagulant at the clarification plant inlet will precipitate phosphorous from the clarified water stream.


Highly Efficient Aeration

Activated sludge plants can be designed using a variety of configurations, including above-ground tanks or ponds, to accommodate different types of wastewater treatment needs. These systems utilise various aeration methods to provide the necessary oxygen for the microbial community to break down organic pollutants. Common aeration methods include fine bubble diffusers, surface aerators, and submersible aerators. Each method has its advantages depending on the plant’s design and operational requirements.

Surface aerators are often used for large, shallow basins while submersible aerators are often the ideal choice for smaller applications. Fine bubble diffusers, on the other hand, distribute air more efficiently, creating smaller bubbles that provide greater oxygen transfer, which is crucial for optimising the treatment process.

At Hydroflux, we prefer to use Aerostrip fine bubble diffusers where possible, as they offer the most sustainable solution in terms of energy efficiency. These diffusers have been proven to deliver high oxygen transfer rates with lower power consumption compared to other aeration technologies. The choice of aeration method, however, depends on several factors, including the configuration of the aeration basin, the depth of the tank, and the specific oxygen demands of the wastewater being treated. By carefully evaluating these factors, we ensure that the most suitable and efficient aeration system is selected for each project, optimising both performance and energy usage for long-term sustainability.

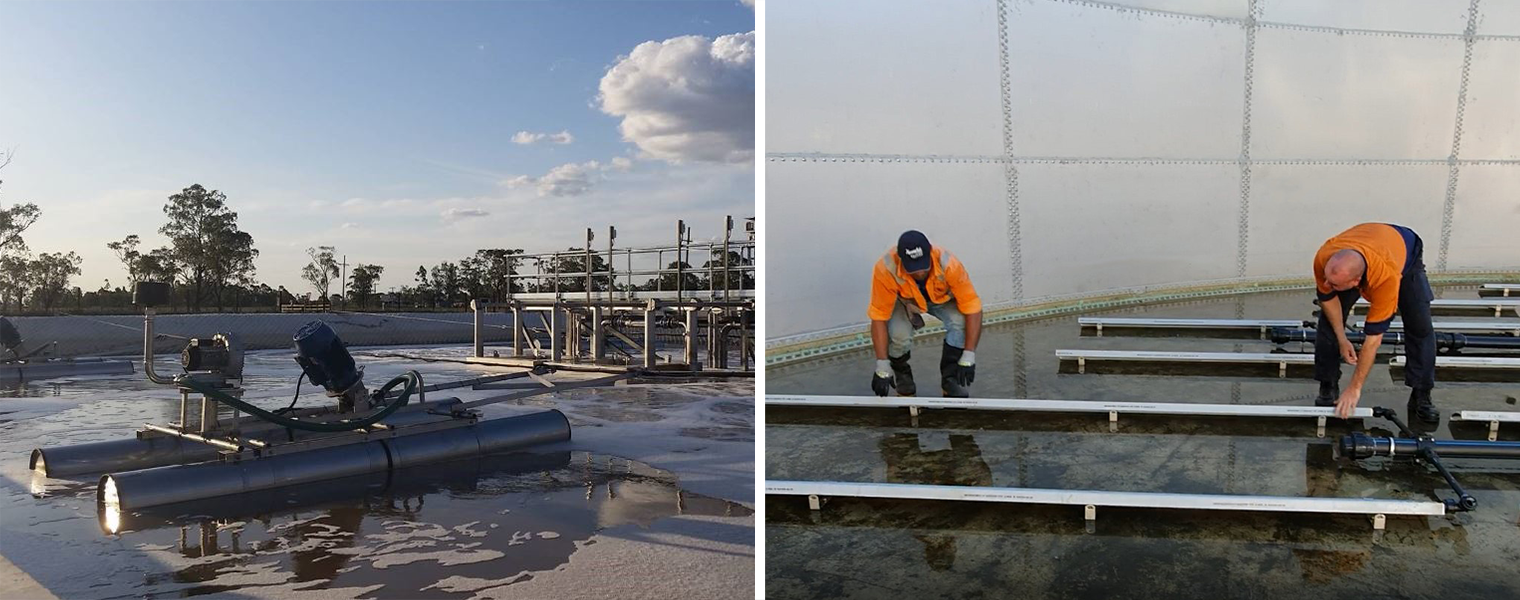

Aerostrip diffusers offer the highest oxygen transfer efficiency

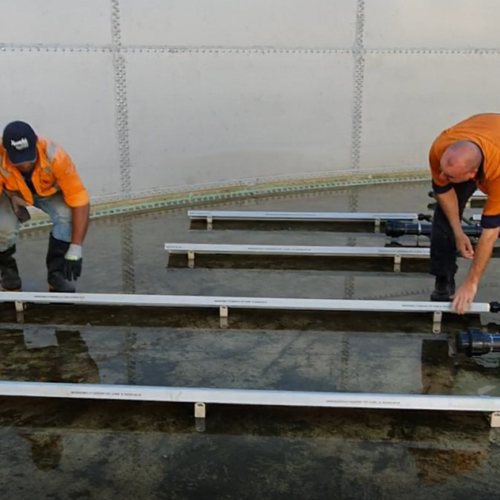

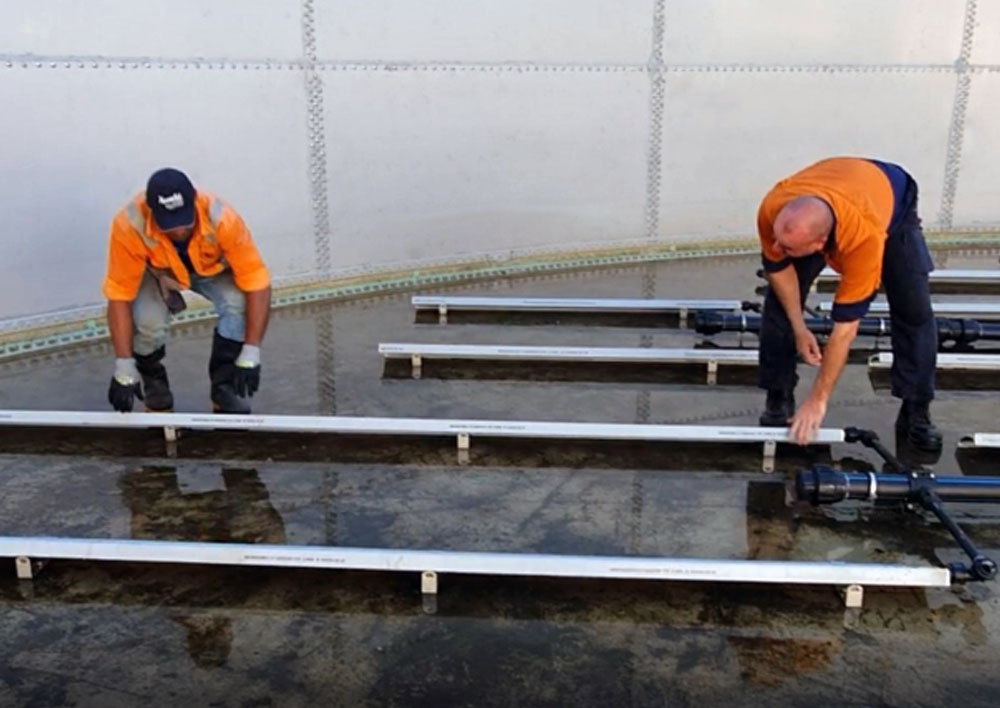

Aerostrip diffusers are simple and quick to install

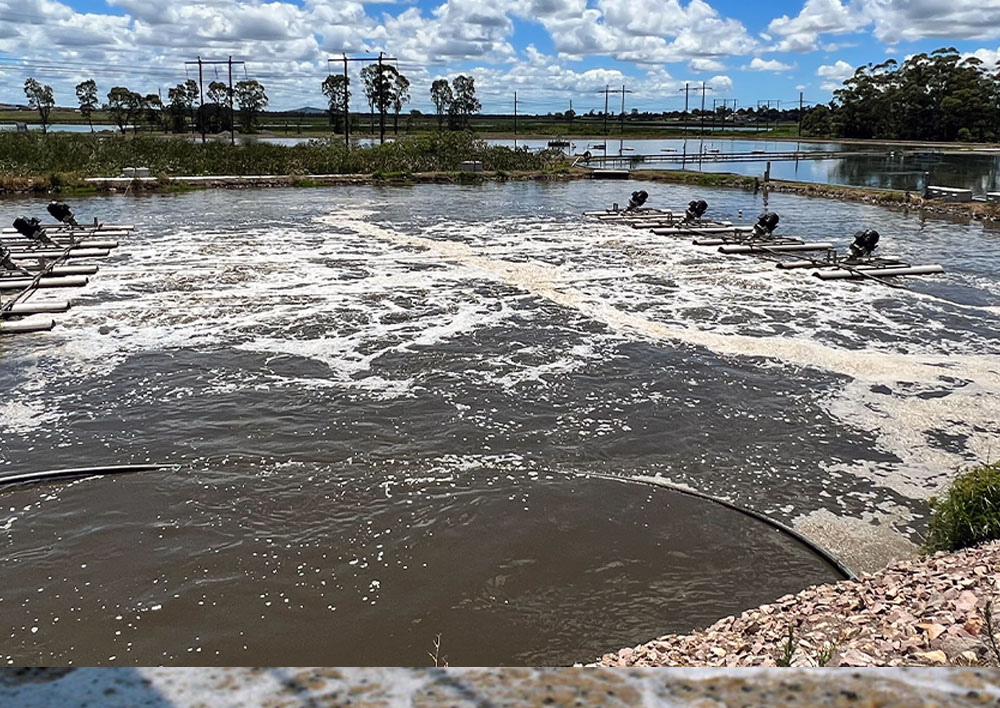

Surface aeration is an ideal aeration method for pond structures

Selecting the Optimum Means of Clarification for your Activated Sludge Plant

The primary function of a clarifier in wastewater treatment is to separate the biomass, or activated sludge, from the treated wastewater stream. This has been traditionally achieved through settling, where the biomass naturally sinks to the bottom of the clarifier tank. Once the biomass settles, it forms a sludge layer at the base of the clarifier, which is then withdrawn and usually dewatered with some returned back to the aeration process as return activated sludge (RAS).

Dissolved Air Flotation (DAF) using the HyDAF is an excellent alternative to clarifiers in industrial wastewater applications, offering several distinct advantages.

DAF systems operate with a surface loading rate that is at least five times greater than clarifiers, significantly reducing the required footprint and allowing for more compact system designs. The sludge generated by a DAF system typically contains a much higher percentage of dry solids, which results in lower volumes of waste activated sludge that need to be further processed, making it more efficient and cost-effective in the long term. Additionally, because the DAF system removes biomass via flotation, it is capable of handling scum and buoyant biomass that can form during upsets in the biological treatment process. This ensures that even under fluctuating conditions, the system continues to effectively remove undesirable solids from the aeration process.

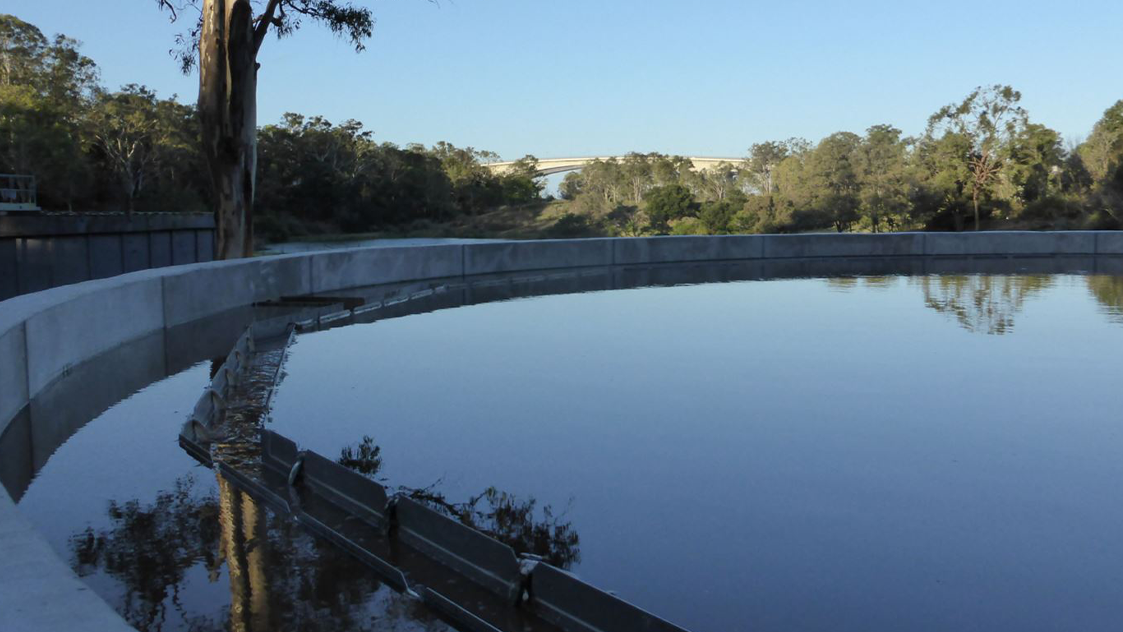

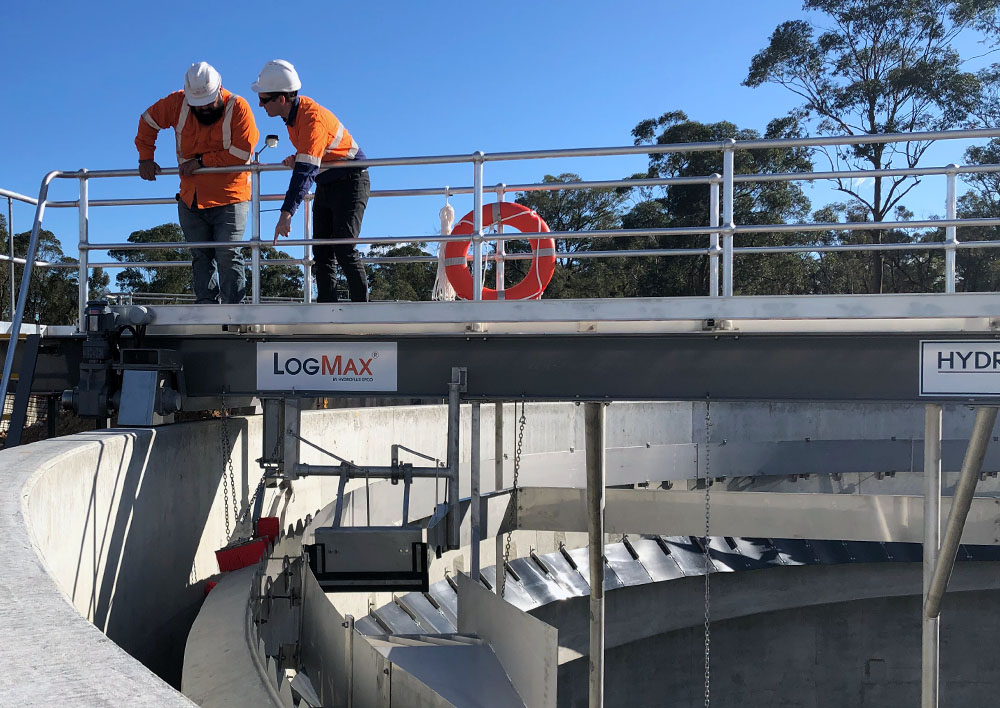

Hydroflux has it own proprietary range of clarifiers for activated sludge plants

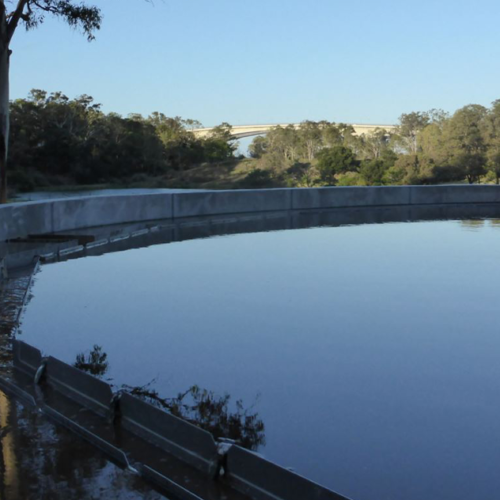

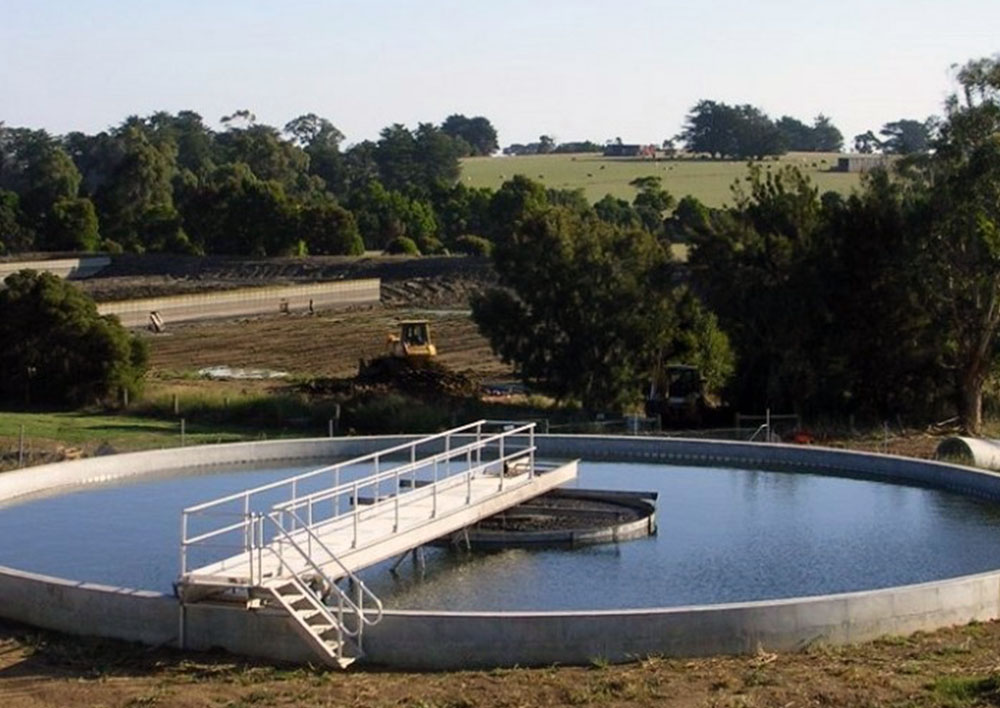

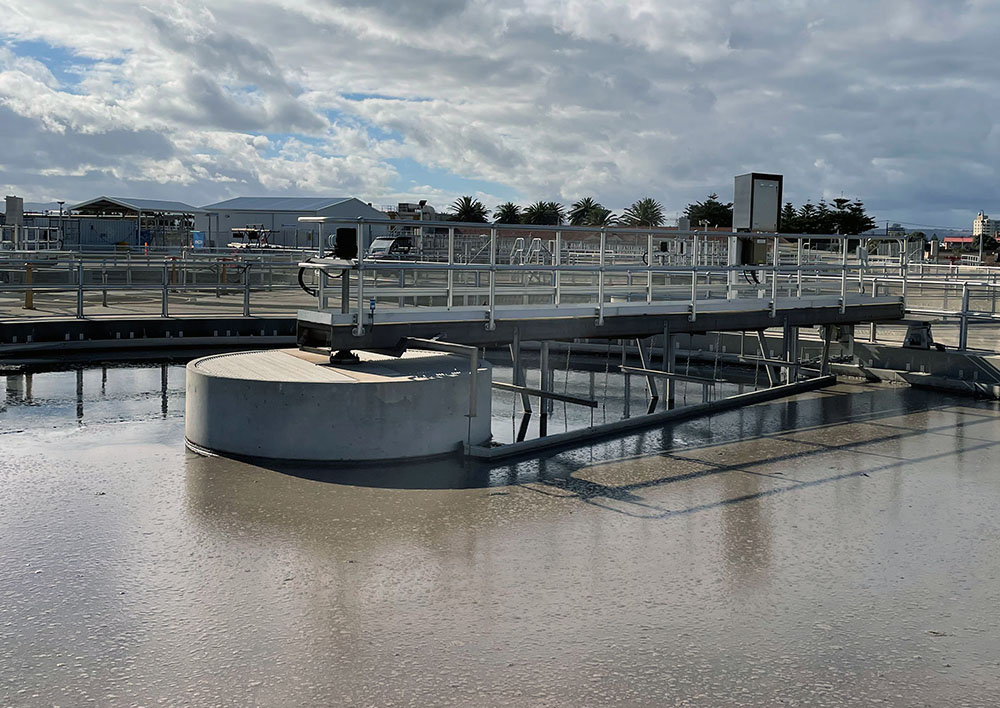

Hydroflux clarifiers are available up to 50 m diameter

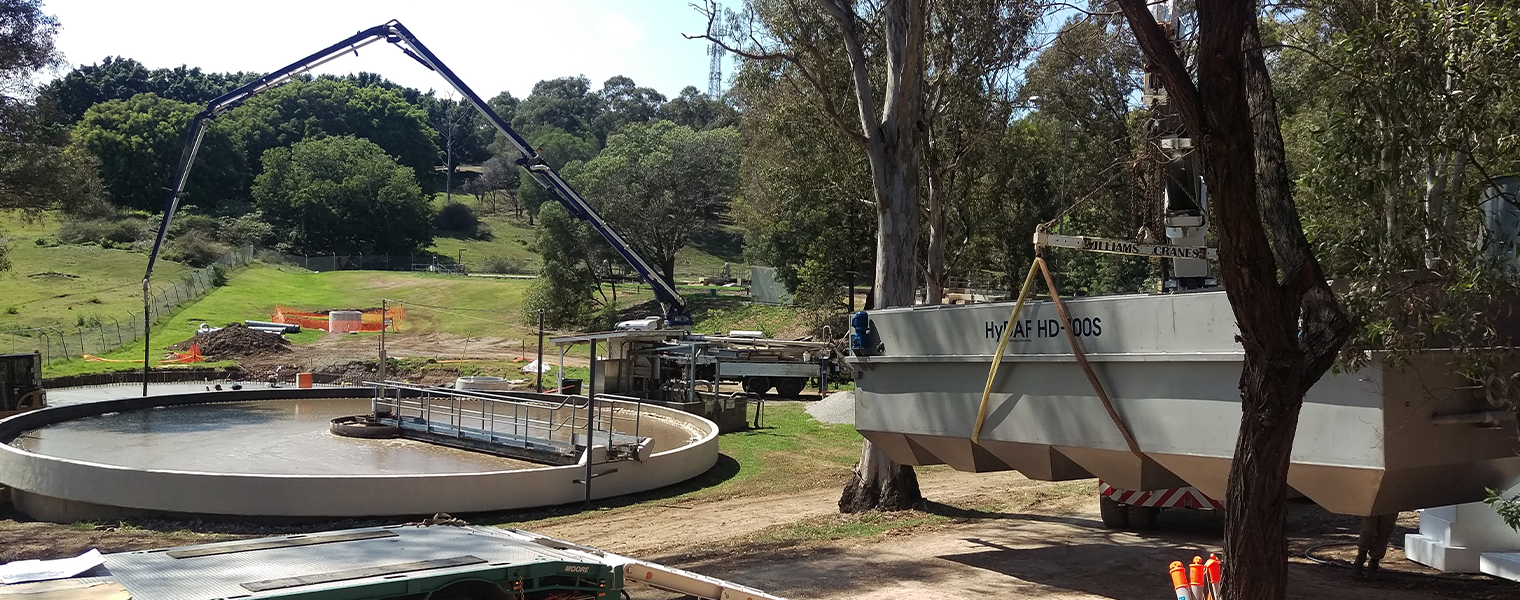

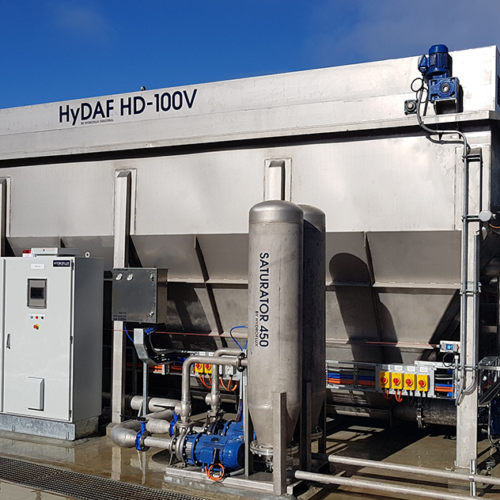

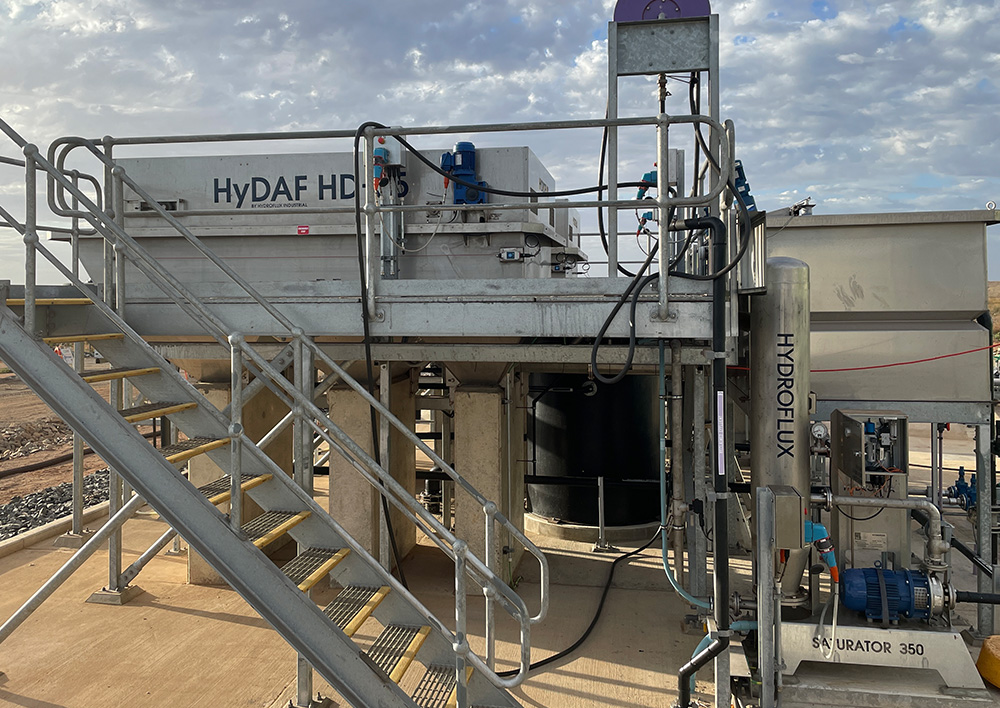

Dissolved air flotation can be a preferable option in activated sludge plants

Activated Sludge FAQs

Common Issues with Activated Sludge Systems and Their Solutions

One of the most common problems in activated sludge systems is bulking sludge, which occurs when sludge fails to settle properly in the secondary clarifier. This is often caused by an overgrowth of filamentous bacteria which interfere with floc formation. Poor settling leads to high suspended solids in the effluent, reducing treatment efficiency and potentially causing compliance issues. To mitigate bulking, operators can optimise the food-to-microorganism (F/M) ratio, adjust aeration rates, and introduce selector tanks to promote the growth of floc-forming bacteria.

Another issue is foaming, which is commonly caused by Nocardia and Microthrix species in the presence of high fats, oils, and grease (FOG). Persistent foaming can reduce aeration efficiency, lead to biomass loss, and cause operational difficulties. To prevent foaming in industrial wastewater treatment, plants should control FOG in the influent through the use of DAF systems and other pre-treatment systems. Additionally, increasing sludge age and optimising aeration can help outcompete foaming bacteria. If foaming becomes excessive, water sprays or antifoam agents can be used as a short-term solution.

Low dissolved oxygen (DO) levels are another critical problem, usually caused by inadequate aeration, high organic loads, or inefficient oxygen transfer although this is applicable to all aerobic wastewater treatment plants. Insufficient oxygen affects microbial metabolism, leading to incomplete organic matter degradation and potential odour problems from anaerobic conditions. To address this, operators should monitor DO levels regularly and adjust aeration rates accordingly. Cleaning or upgrading aeration diffusers can enhance oxygen transfer efficiency, while equalisation tanks can help regulate organic loading.

Lastly, toxic shock events can disrupt the microbial community in an activated sludge system, often due to sudden discharges of industrial chemicals, heavy metals, or extreme pH variations. Such events can kill essential microorganisms, leading to system failure and poor treatment performance. To minimise this risk, industries should implement pre-treatment measures and carefully control the release of toxic substances. Additionally, wastewater treatment plants should operate buffer tanks to provide a more consistent stream to the activated sludge plant.

Is it better to use a DAF or clarifier to remove biomass?

A secondary clarifier is the traditional and somewhat conventional choice for separating biomass in an activated sludge system, relying on gravity to settle flocculated microorganisms. The settled sludge is either returned to the aeration tank as Return Activated Sludge (RAS) to maintain microbial populations or removed as Waste Activated Sludge (WAS) for further processing. Clarifiers are energy-efficient and work well when sludge has good settling characteristics. However, they can struggle with bulking sludge caused by filamentous bacteria, leading to poor separation and high effluent solids.

A Dissolved Air Flotation (DAF) system, on the other hand, uses fine air bubbles to float the biomass to the surface rather than relying on settling. DAF is particularly effective for poorly settling sludge, such as filamentous or light flocs that would otherwise cause clarifier issues. It also produces a more concentrated sludge, reducing sludge handling costs. However, DAF units require more energy due to air compression and may involve higher operational costs. If the plant experiences bulking sludge, poor settling, or needs a higher degree of solids removal, DAF may be the better choice. Conversely, if the sludge settles well and energy efficiency is a priority, a clarifier remains the preferred option.

How much waste activated sludge will the system generate?

The amount of Waste Activated Sludge (WAS) generated in an activated sludge system depends on factors such as influent organic load (BOD/COD), sludge retention time (SRT), and system efficiency. On average, activated sludge systems produce 0.3–0.5 kg of dry sludge per kg of BOD removed. For example, a system treating 1,000 kL/day of wastewater with an influent BOD of 1,000 mg/L could generate 300–500 kg of dry sludge per day. Since WAS typically has a solids concentration of 0.5–1.5% (5,000–15,000 mg/L TSS) before thickening, this translates to a liquid WAS volume of approximately 40–80 kL/day before dewatering.

If a Dissolved Air Flotation (DAF) system is used for sludge thickening, it can increase the solids concentration to around 3% (30,000 mg/L TSS), significantly reducing the sludge volume. This means that instead of 40–80 kL/day of liquid WAS, the thickened sludge volume could be reduced to approximately 10–20 kL/day. Whilst the amount of dewatered solids remains the same, the cost, capacity, and operating time of the dewatering plant when using a DAF can be reduced.


Why Choose Hydroflux for Your Activated Sludge System Construction?

Unmatched Quality: At Hydroflux, we are committed to delivering high quality activated sludge systems with exceptional build quality. We ensure that every system is built to last and operates with maximum efficiency, ensuring long-term performance and reliability.

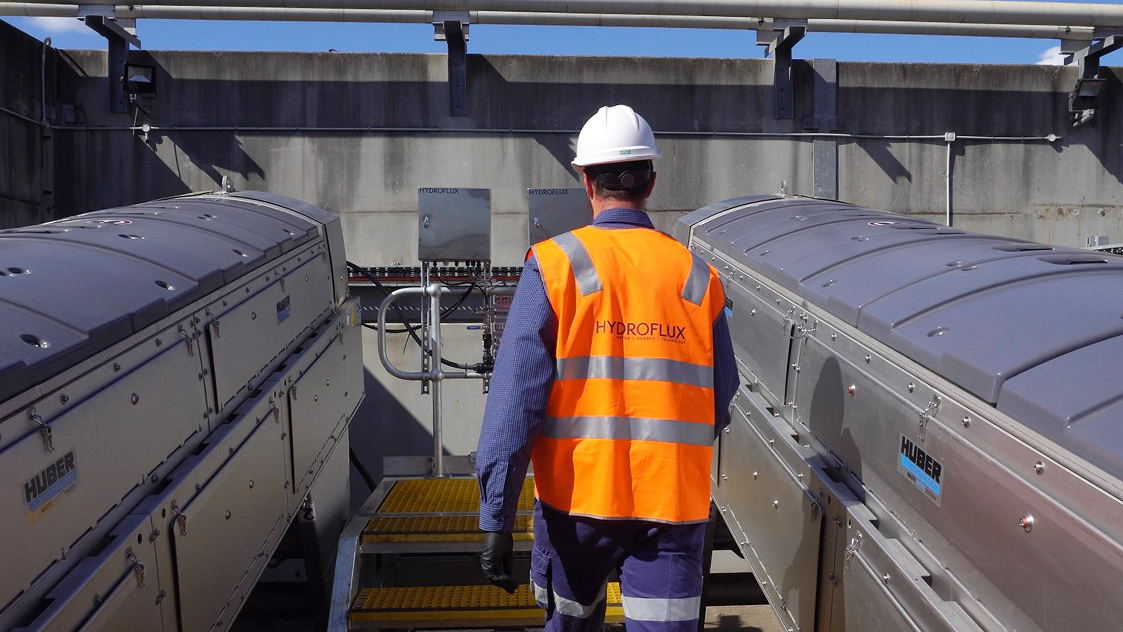

Proprietary Equipment for Superior Results: Hydroflux utilises proprietary ancillary equipment such as the Aerostrip Fine Bubble diffusers, Epco Clarifiers, the HyDAF dissolved air flotation system, and Huber Screw Press to enhance the performance of your activated sludge plant system. These advanced systems work synergistically with the activated sludge process, ensuring efficient aeration, sludge removal, improved solids separation, and reduced operational costs.
