The Hydroflux chamber CakeMax® filter press is a batch dewatering system and is ideally suited to small to medium volumes of sludge.
A CakeMax® filter press can offer several advantages over other dewatering systems:
- Very dry filter cake up to 60% dry solids
- Operational requirements are very low
- Capital cost is low
- Minimal chemistry if any is required
- Maintenance is relatively simple and can usually be undertaken by a non- specialised maintenance team
- Start up and shut down is quick and simple
Find out more
General CakeMax® filter press operational concept
A CakeMax® filter press comprises a series of interconnected plates fitted with filter cloths held together by a hydraulic ram. The plates are designed so that there is a void in between each plate where dewatering of the slurry occurs based on the pressure applied by the feed pump.

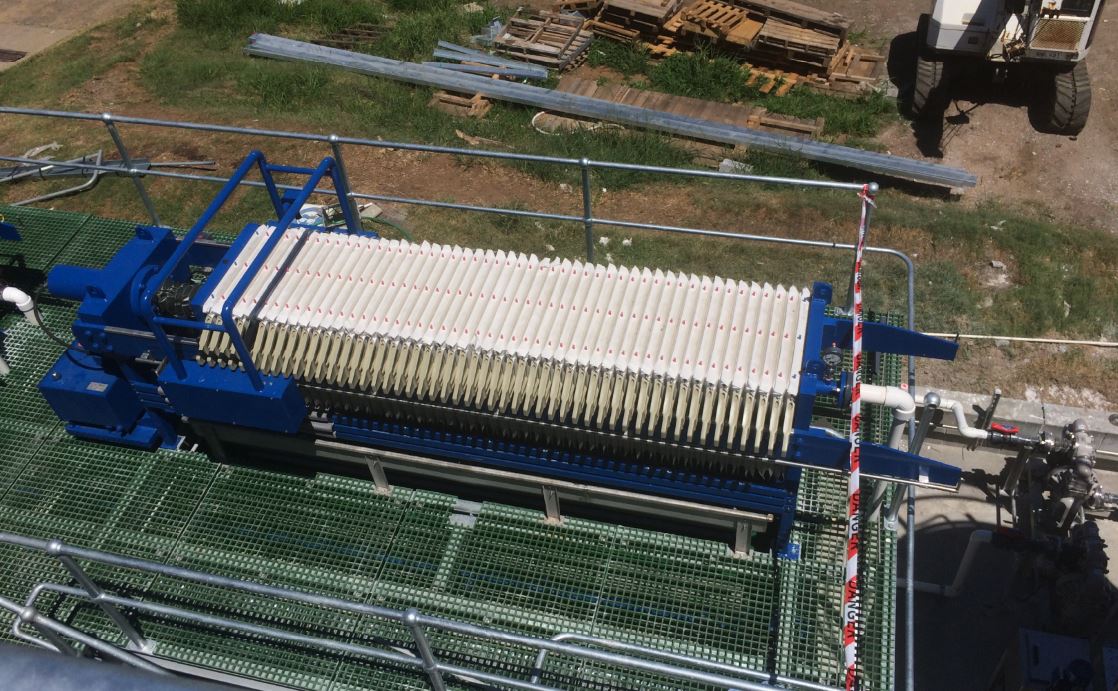

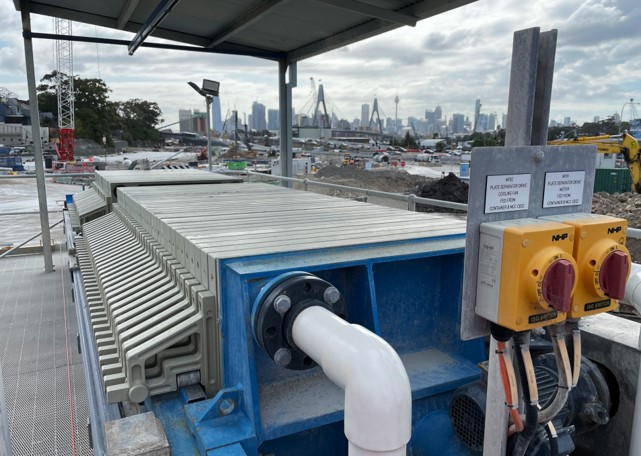

The photographs above show an automated CakeMax® filter press operating at a construction site in NSW. In the left photograph, the CakeMax® filter press is closed and in it filling and dewatering cycle. Once the dewatering cycle is complete, the press opens allowing the dewatered cake to drop into a storage bin below (right)
CakeMax® Filter press dewatering process
The first stage of dewatering in a CakeMax® filter press is chemical conditioning. This is usually achieved by dosing a polymer into a mixed sludge storage tank upstream of the CakeMax® filter press. The flocculant will bind the sludge particles into larger flocs which are larger and easier to dewater in the press.

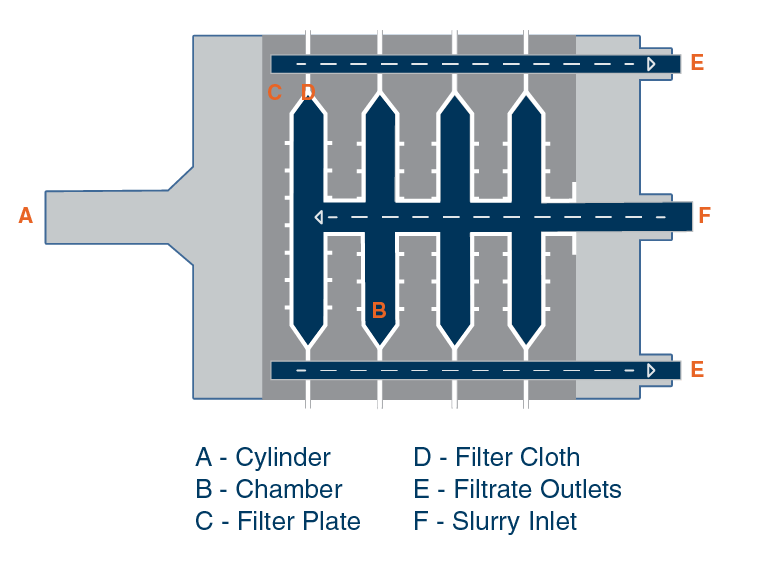

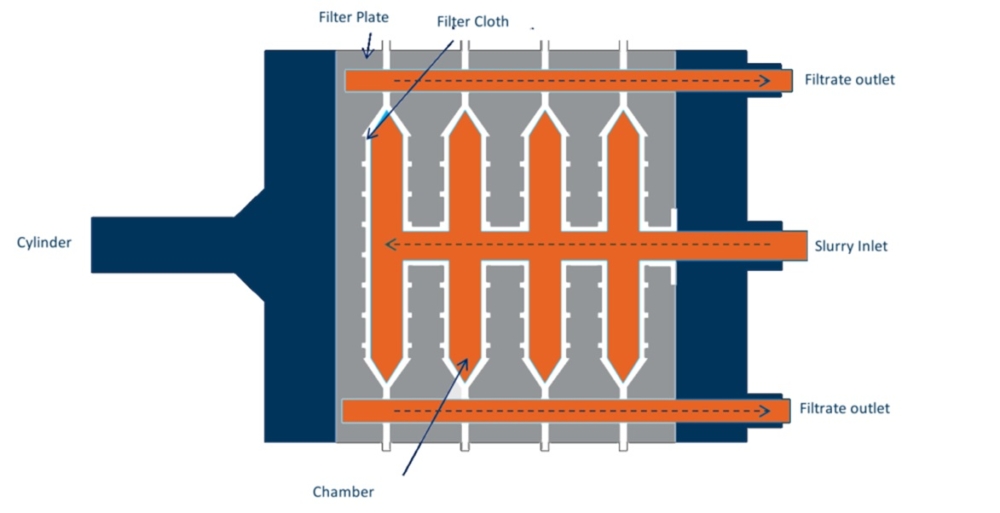

The stages of dewatering in a CakeMax® filter press are as follows (please see diagram below):
- The chamber is empty and has been sealed closed by the hydraulic ram. The press is ready to receive wet solids.
- The wet solids are fed into the chamber and the solids begin to fill the chamber void.
- As the pressure builds up, the water is filtered through the filter cloths to drain.
- When the pressure reaches a set value, the dewatering cycle ends, and the feed stops.
- The hydraulic ram is retracted and the plates are released manually or automatically. This allows the cake solids to fall from between the plates into a bin or conveyor below.

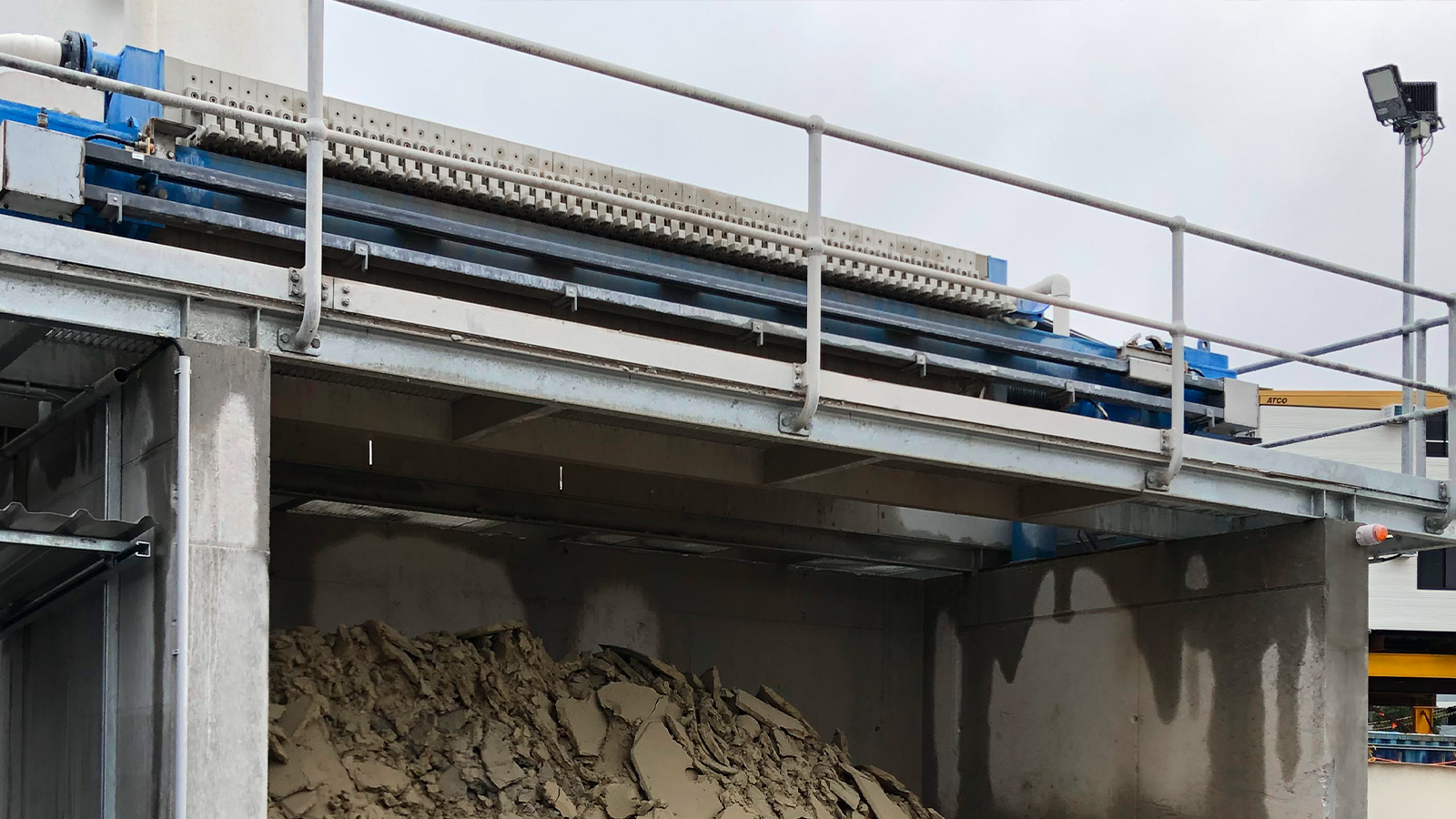

The photograph above shows an automated CakeMax® filter press dewatering solids removed in a clarifier treating wastewater and ground water at a construction site. The design in this case involved elevating the press on a platform and allowing the sludge drops into a bunker below for disposal.
CakeMax® Filter press capacities
The Hydroflux CakeMax® Filter Presses are available with various plate sizes, numbers of plates, and automation.
The capacity of the CakeMax® filter press is defined as the volume of dewatered cake that will be generated for each batch which depends on the size of the plate, the number of plates installed, and the duration of the filtration cycle.
The following table provides indicative capacities of CakeMax® filter presses as defined as the cake volume when using various size plates. The daily capacity depends on the dewatering cycle time which will vary subject to the application and can range from 4-24 cycles per day or more.
Sizing Table
| Plate Size | Cake Volume Litres – Chamber Plates | Cake Volume Litres – Membrane Plates |
| 470mm square | 25-150 | – |
| 500mm square | 40-170 | – |
| 630mm square | 100-410 | 110-460 |
| 800mm square | 350-850 | 500-1200 |
| 1000mm square | 760-1550 | 750-1850 |
| 1200mm square | 1020-2400 | 1600-3700 |
| 1300mm square | 1300-3400 | 1900-4900 |
| 1500mm square | 1800-4700 | 2500-8500 |
More sizes are available, please contact Hydroflux for sizing for your application.
Automation
CakeMax® Filter presses can be semi-automatic or fully automated. Semi-automatic CakeMax® filter presses rely on an operator to release the hydraulic ram once the dewatering cycle is complete. Once the pressure is released, each of the plates are pulled apart allowing the filter cake to drop into a bin below.
The fully automated CakeMax® filter press uses a pneumatic plate shifter to automatically open the plates once the press has completed the dewatering cycle. Automation of the CakeMax® filter press considerably increases the daily capacity of the unit by increasing the number of cycles that can be completed without operator intervention.

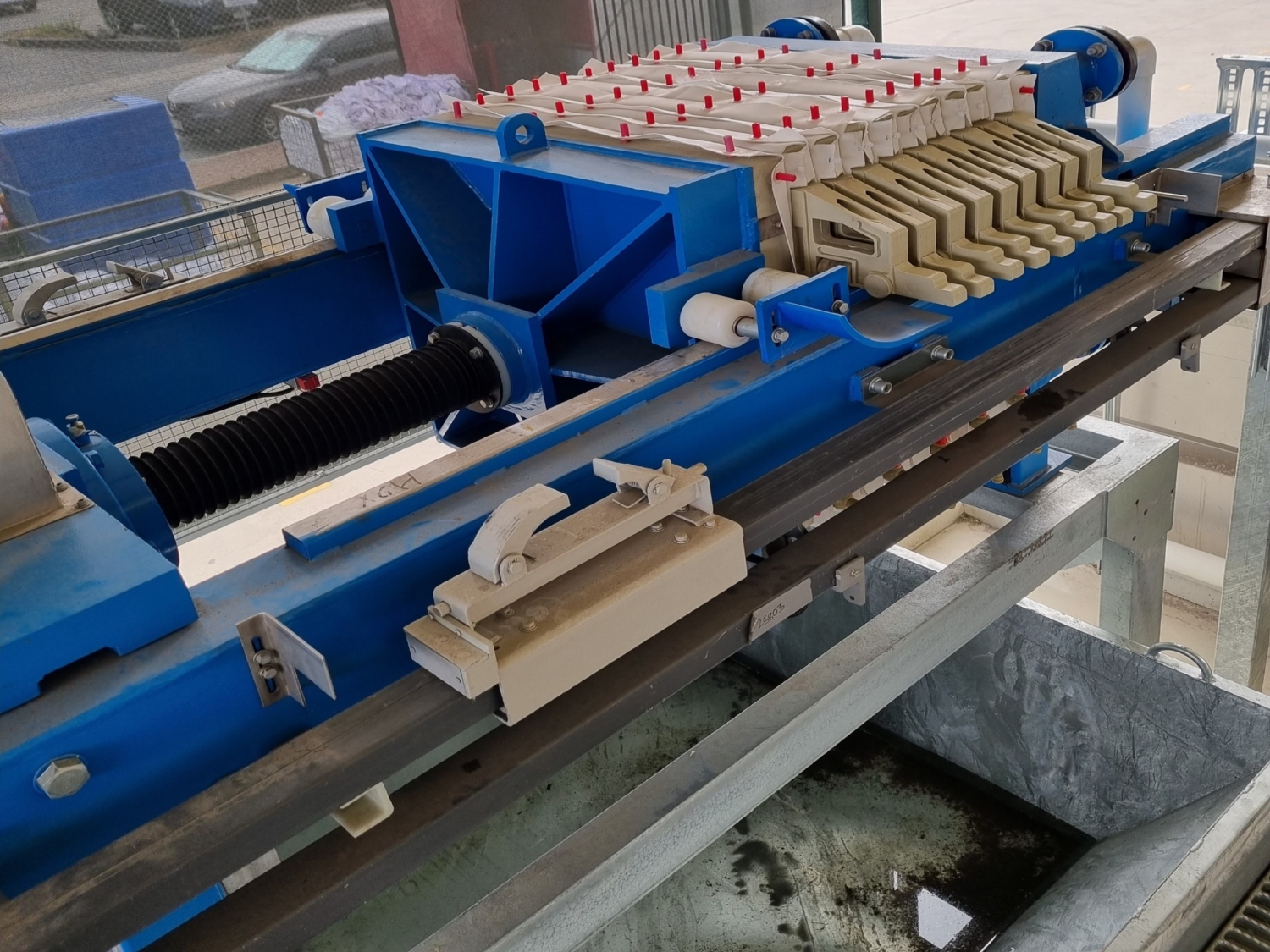

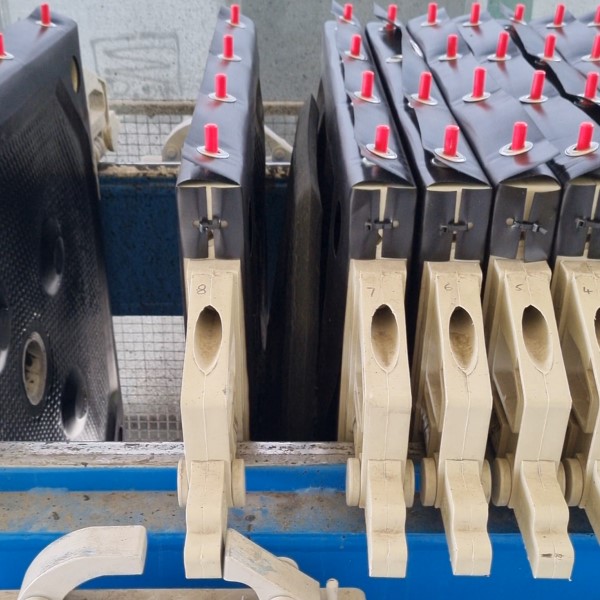

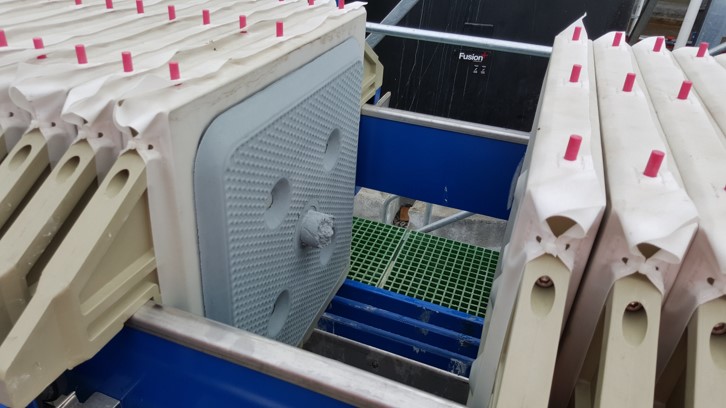

The photographs above show the automatic plate shifting mechanism of a fully automated CakeMax® filter press operating at a construction site.
The nature of the filter press dewatering process makes the CakeMax® filter press most suited to non-greasy applications such as the metal processing and construction industry where dry solids concentrations in excess of 60% are possible however Hydroflux has successfully used CakeMax® filter presses in many other applications including:
- Metal Processing
- Ground Water Treatment
- Site Remediation
- Breweries & Wineries
- General Industry
- Heavy Industry
- Pulp & Paper
- Vegetable Industry

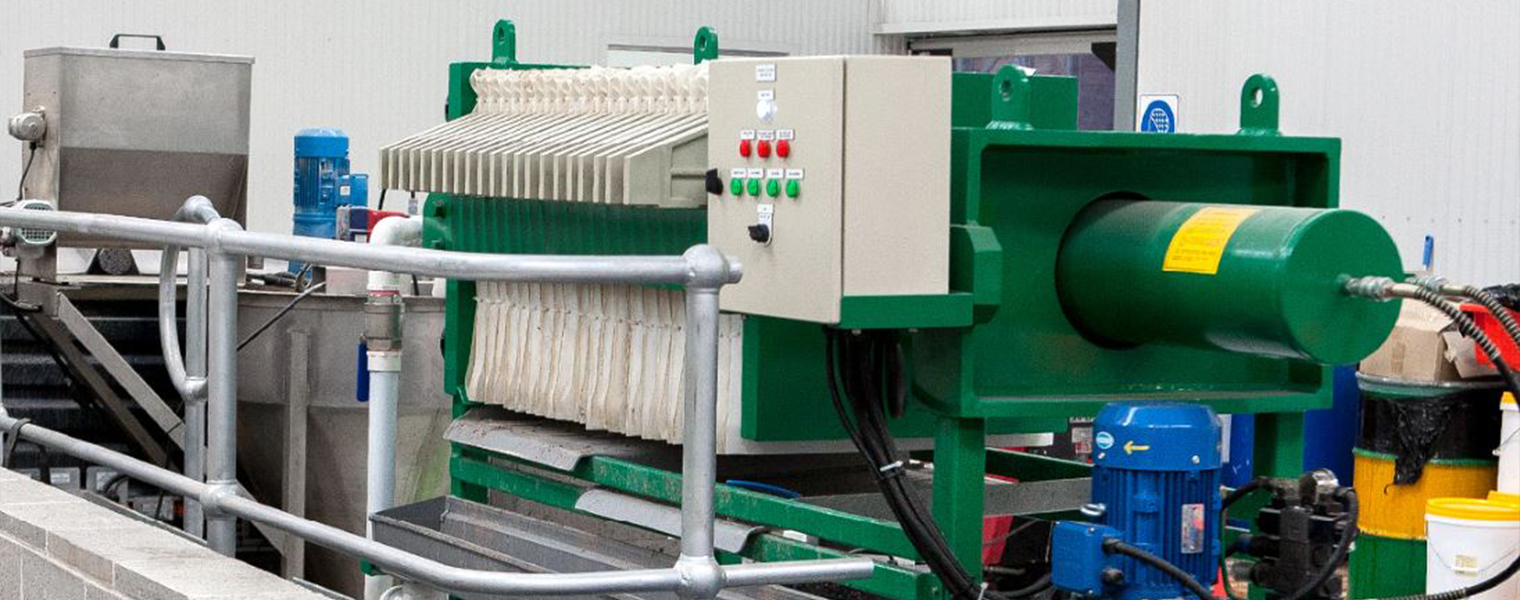

A small CakeMax® filter press as part of a small industrial wastewater treatment plant in NSW
CakeMax® Filter press used for dewatering DAF sludge
CakeMax® Filter press cake from a metal removal process being conveyed into a bin

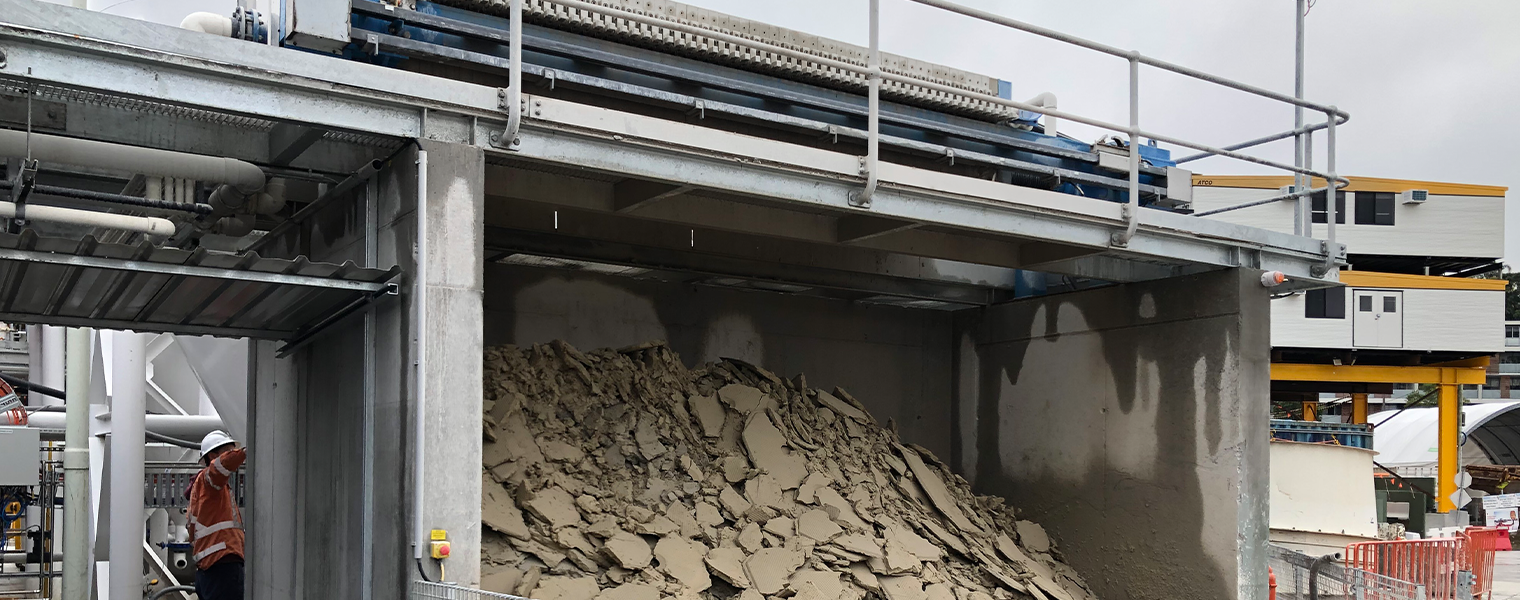

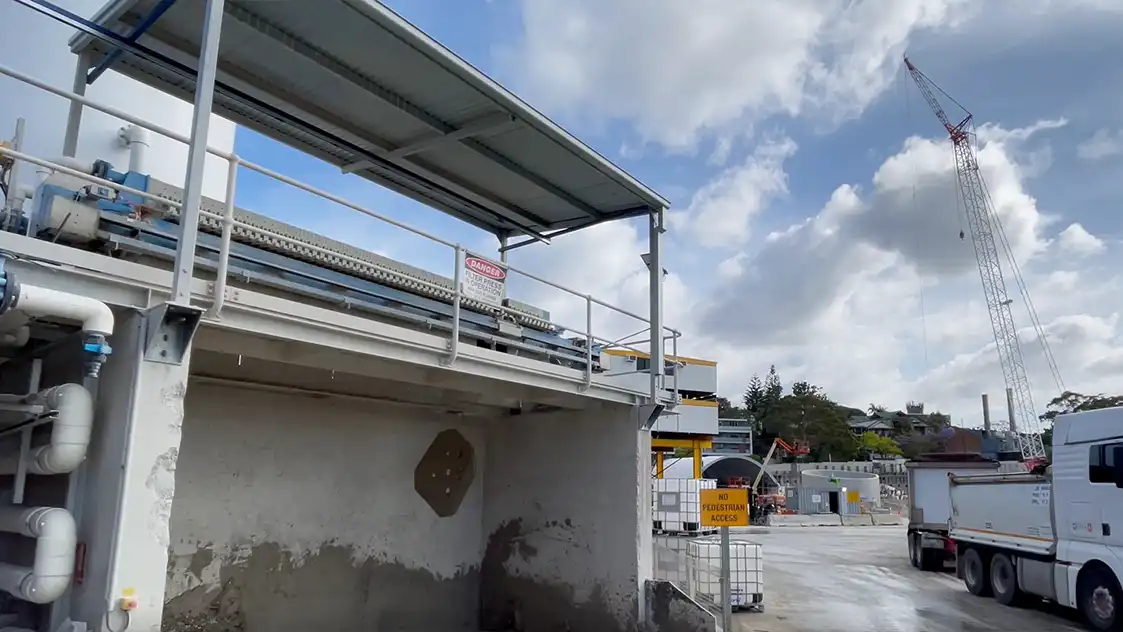

Filter cake dropping from a filter press at a large construction site

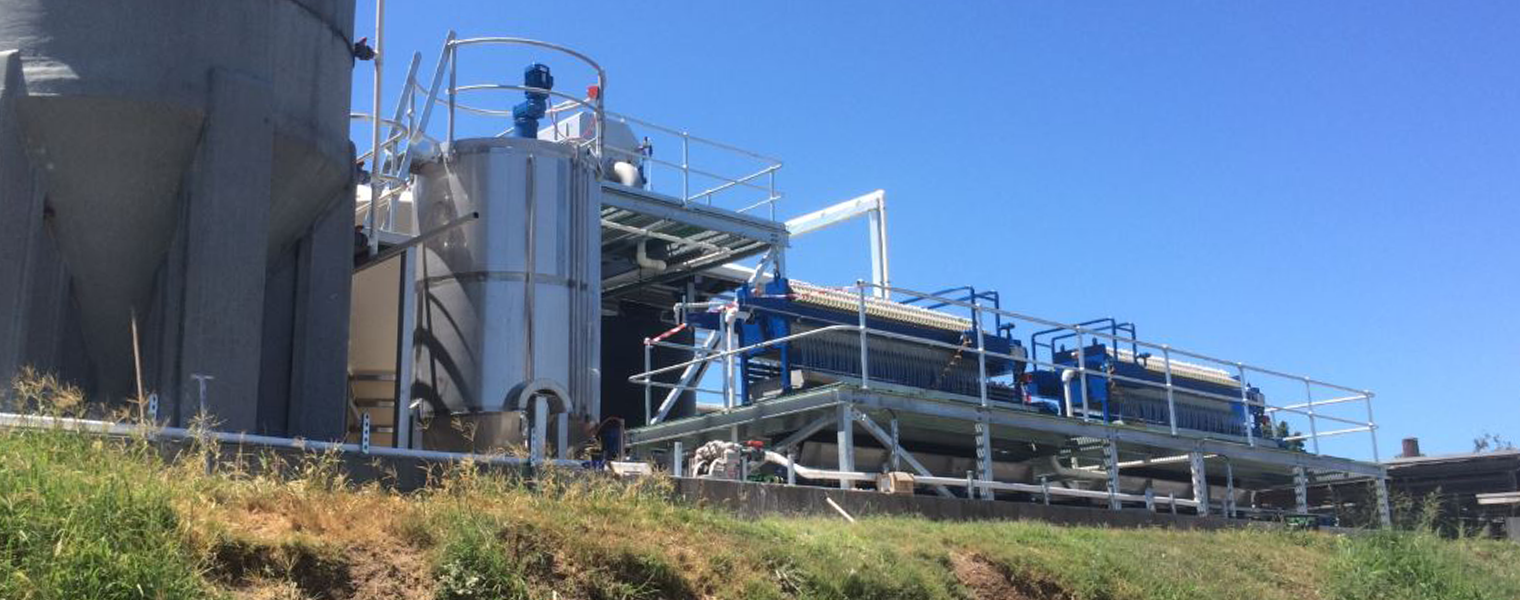

Twin CakeMax® filter presses being used for dewatering DAF sludge

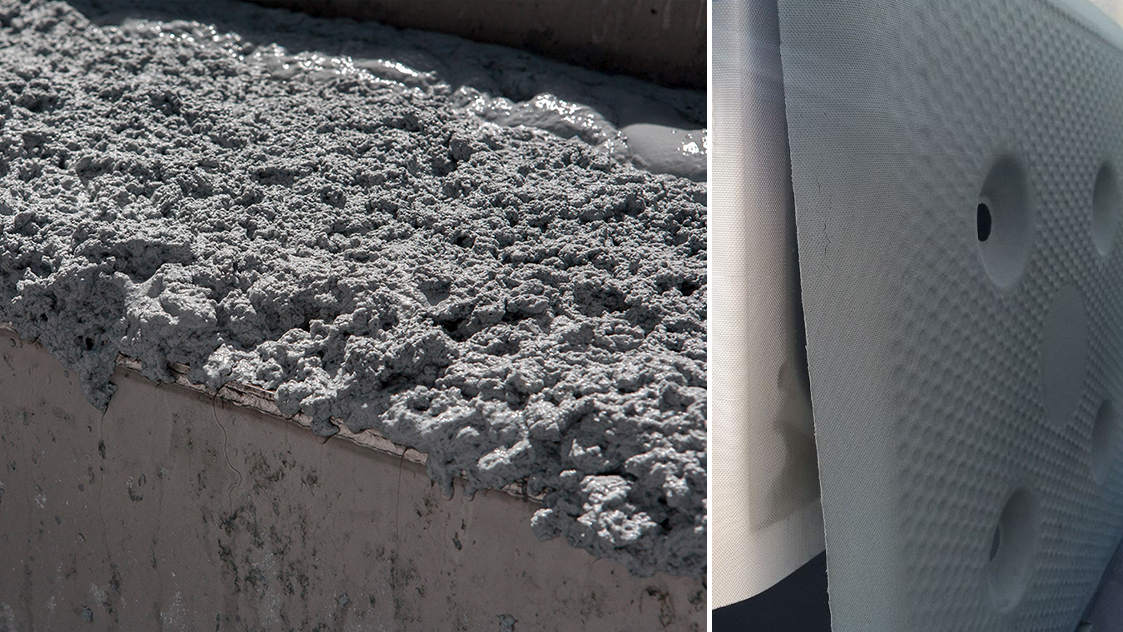

DAF sludge from metal removal process before and after dewatering in a CakeMax® filter press

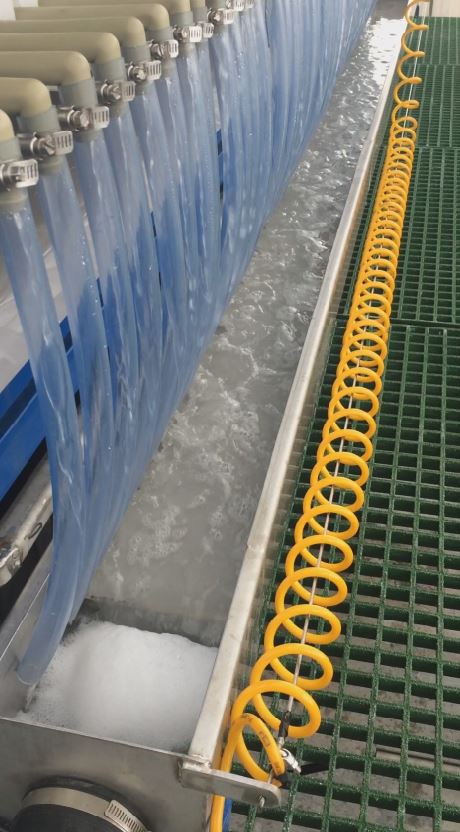

Typical filtrate lines and trough from a small CakeMax® filter press
Filter cake dropping from plates during automated opening cycle at an industrial laundry

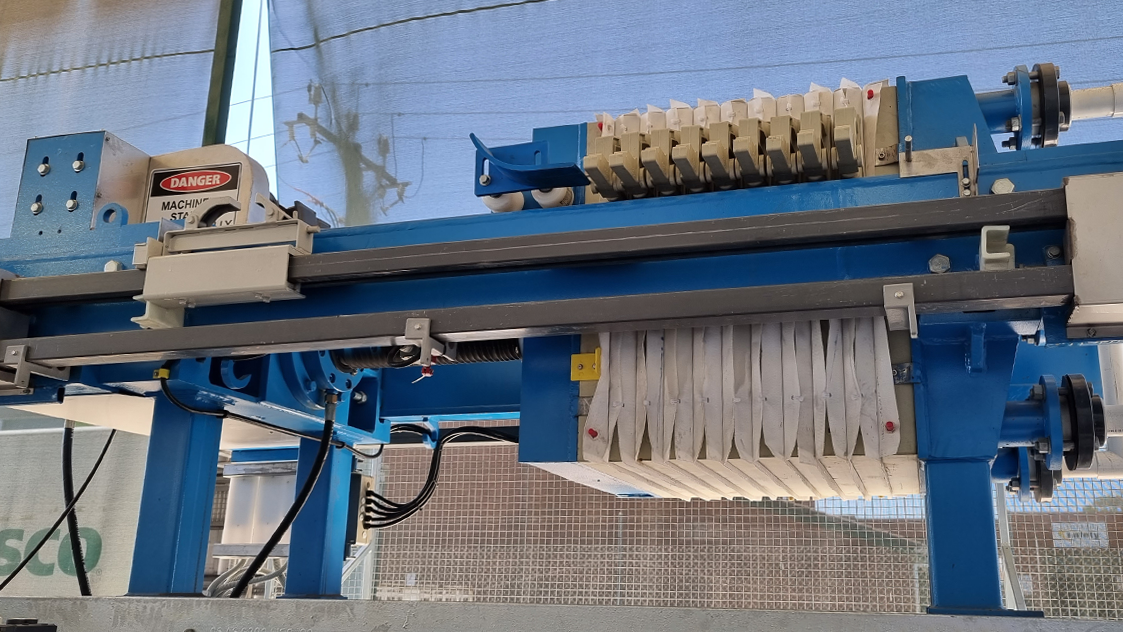

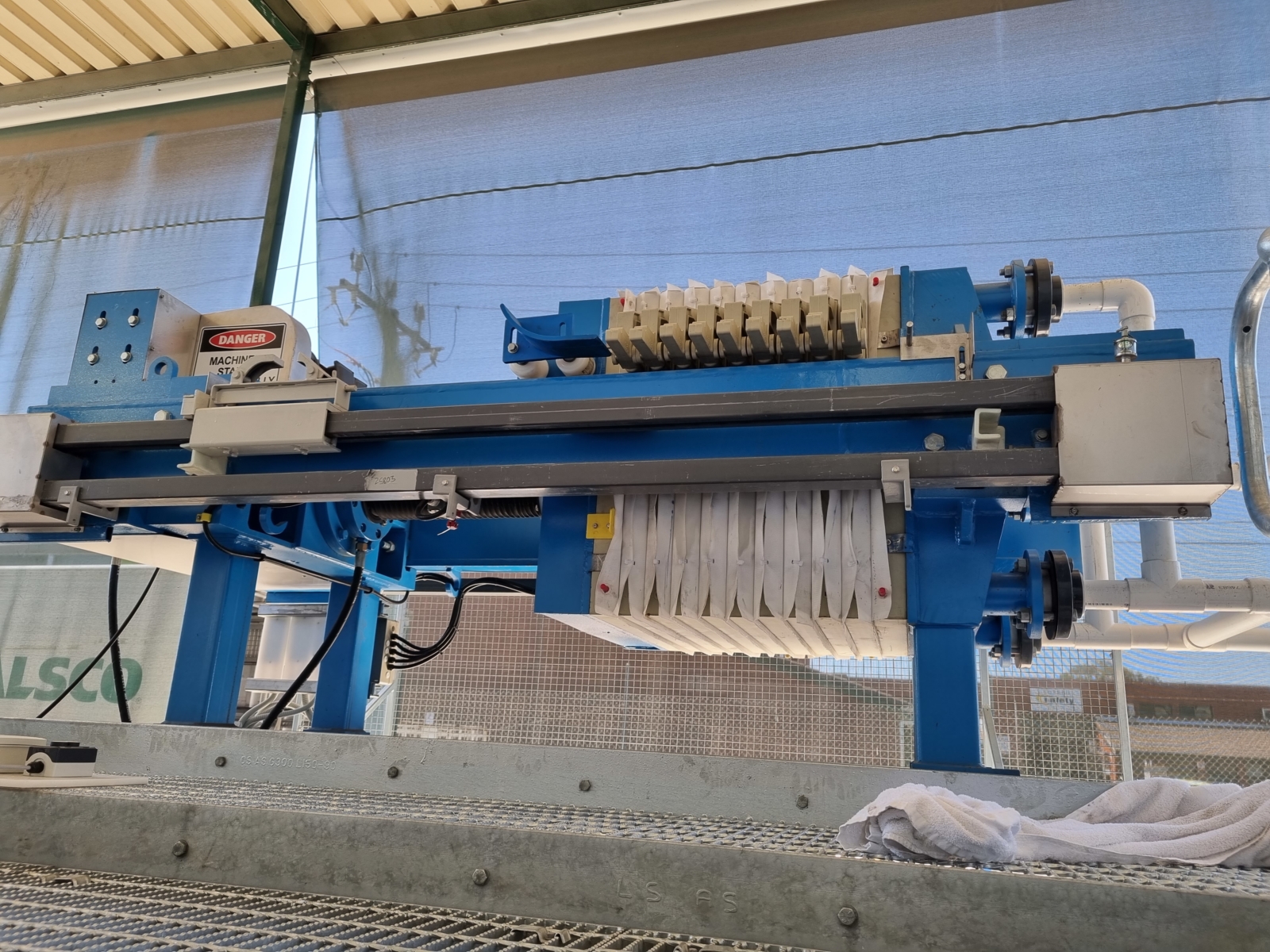

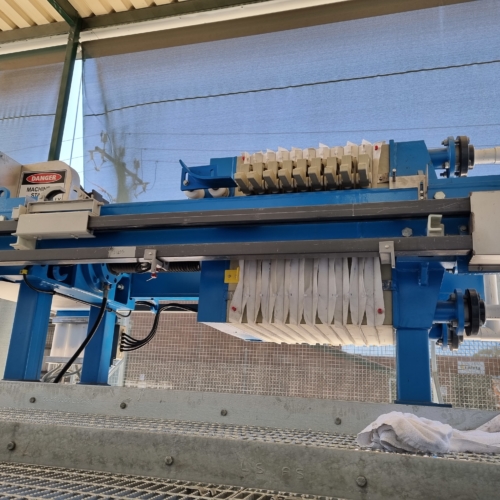

Small automated CakeMax® filter press being used for dewatering sludge form an industrial laundry
Filter cake dropping from a CakeMax® filter press at a large construction site
